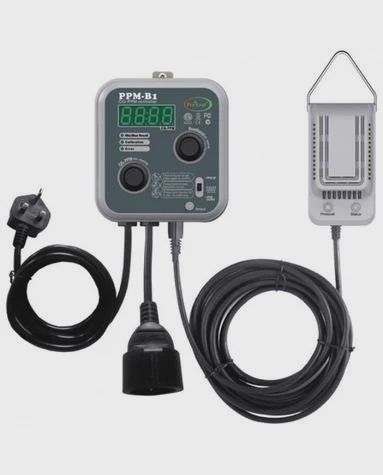

Pro-Leaf CO2 Controller

Pro-Leaf CO2 Controller – Easy, Accurate CO2 Management for Bigger Yields

The Pro-Leaf Controller makes it simple to maintain optimal CO2 levels in your grow room. Just plug it into a socket, connect your CO2 source (bottle or burner), and it’ll handle the rest—automatically adjusting CO2 output based on real-time data from its sensor.

• Boosts Growth & Yields: Increases photosynthesis with CO2 levels between 400–2000ppm

• Smart & Efficient: Built-in light sensor stops dosing during dark periods to avoid waste

• Simple Setup: Plug-and-play operation with a clear display and easy controls

• Accurate Monitoring: Real-time CO2 readings and dosing via external sensor (4.5m cord)

• Flexible Control Modes: Works with bottles, regulators, gas-powered CO2 generators, or fans

• Includes Everything: Controller, sensor, fixings, instruction manual, and 1-year warranty

Photosynthesis thrives with higher CO2—up to 3x atmospheric levels—helping plants grow faster and produce larger fruits. Unlike guesswork methods, Pro-Leaf doses with precision using real-time data.

Specifications:

• Control Range: 400–2000ppm

• Accuracy: ±100ppm

• Max Load: 10A

• Weight: 1kg

• Power: UK 3-pin plug

Quick Setup Guide:

1. Set your desired CO2 PPM and deadband (tolerance range).

2. Choose your control mode:

   • PPM Up for CO2 burners

   • Fuzzy Logic for CO2 bottles

   • PPM Down for fan-controlled reduction (optional)

3. Use the Max/Min function to track CO2 levels while away.

Note: Keep at least 2.5m from digital ballasts. Not compatible with sulfur vapourisers (remove sensor before use to protect warranty).
